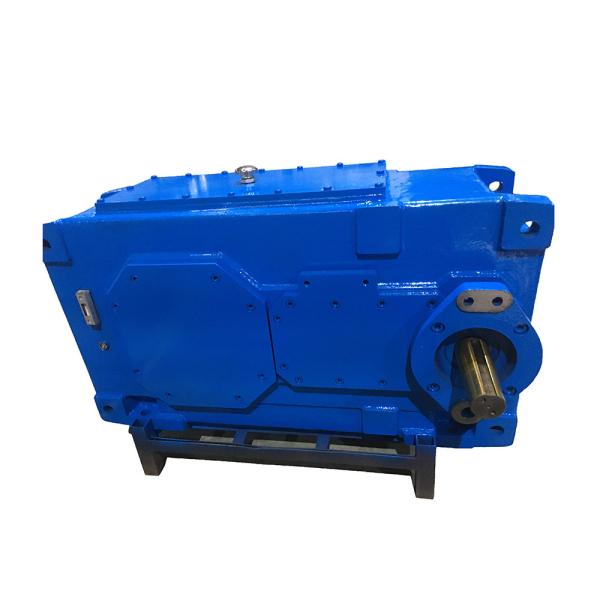

Hollow Shaft Cylindrical Speed Reducer Industrial Transmission Gearbox H/B Series

Product description

H/B gear reducer is suitable for high-power motors, with large torque capacity, modular design and multiple output modes. The utility model has the advantages of high efficiency, long service life, bearing large axial force and radial load, low operation noise, high reliability, compact structure, etc. Four series of reducers can be combined to increase the range of ratio.

Technical data

Power range:4KW-4823KW

Ratio: 1.25 – 450
Output Speed:1.7-1200rpm
Output torque:2-900KNm
Input speed:750rpm,1000rpm,1500rpm,1800rpm.
Input shaft diameter:30mm-140mm
Output shaft diameter:80mm-420mm
Reduction stage: two stages, three stages, four stages
Mounting way: foot mounted, shaft mounted
Output way: Solid shaft ,hollow shaft, hollow shaft for shrink disk
Weight:190KGS-16500KGS
Oil supply :Dip lubrication ,Forced lubrication
Cooling way: without auxiliary cooling, with fan cooling, with cooling coil,
with fan and cooling coil
Direction of rotation of gear output shaft: CW rotation or CCW
Coating system: Standard coating, finishing coat, for all climatic zones

Features

Realized parallel shaft,right-angle shaft modes and horizontal,vertical mounting modes. Using less component parts.

Applying advanced grinding process which improved the stability and the efficiency of transmit power with lower noise.

Input mode: motor connected flange, shaft input

Output mode:solid shaft with flat key,hollow shaft with flat key,hollow shaft with shrink disk,hollow shaft with spline connection, solid shaft with spline connection, solid shaft with flange.

Mounting mode:vertical, horizontal, swing base-mounted, torque-arm-mounted.

Ratio range:1.23~450. It can be higher when combining with K&R series reducer.

Advantages

1. More than 25 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services

Application

•Bucket elevator drives
•Separator drives
•Water mixer drives
•Conveyor drives
•Dryer section drives

•Mining industry drives

Henan Dongtai Gear Co., Ltd. was founded in 1994. It’s a high-tech enterprise which can design and manufacture all kinds of gear reducers; The special reducer is non-standard design and customized.

Our main products are H & B series heavy-duty industrial gearbox, ZDY、ZLY、ZSY、ZFY series hard tooth surface cylindrical gear reducer; DBY/DCY/DFY/DCYK series hard tooth surface bevel gear reducer; QY, ZQ, ZSC series crane special reducer; R series helical gear reduction motor, F series parallel shaft helical gear reduction motor, K series spiral bevel gear reduction motor, S series helical gear worm gear reduction motor;0.5T-20T electric hoist reducer and various of shaft parts. We have the company's unique patent product which is anti-seepage oil reducer (The patent number: 200420003269.7). The product completely solves the problem of oil leakage of gear reducer which has plagued the industry for many years. The products have been sold to nearly 30 provinces, cities and autonomous regions in China, at the same our products are matched with more than 30 large crane factories in the industry. The company has excellent equipment, perfect process equipment, strong technical force, advanced testing instruments and complete testing means. The company undertakes the production and development of various standard and non-standard gears, and we have has passed ISO9001:2001 Quality System Certification.

The company is willing to provide the high quality, low price, high quality service business, the principle of contract and credit, the enterprise spirit of unity, development and innovation, to go hand in hand in economic construction, support each other and create a brilliant future together with friends.
