Warehouse 3Ton 9m 4.5kw gear motor CD1 electric hoist accessories
gear reducer
Product Description

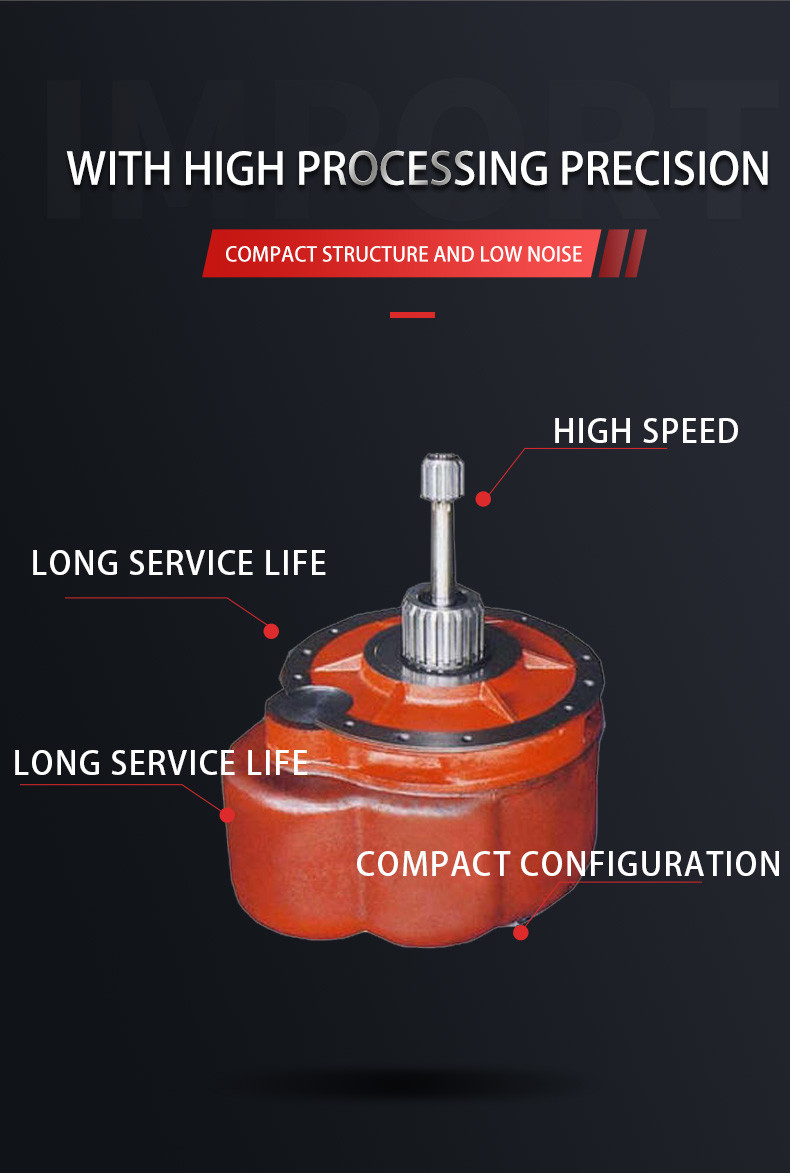

Electric hoist gear box used in 0.5 t - 32 t electric hoist.It is the part of hoist reducer.The reducer for 0.5 t hoist is straight tooth planetary rotation mechanism, others are adopt bevel gears level 3 or level 4 to slow down. The gear and gear shaft adopts 40 Cr or 20 CrMnTi steel forging processing, and the heat treatment, all with rolling bearing support. The shell is made of
cast iron, assembly, dust proof and reliable.
Reducer is a relatively precise machine, the purpose of using it is to reduce the speed and increase the torque.It has a wide variety of models, different types have different uses.There are many kinds of reducer, according to the transmission type can be divided into gear reducer, worm reducer and planetary gear reducer.According to the different transmission series can be divided into a single stage and multistage reducer.According to the gear shape can be divided into cylindrical gear reducer, bevel gear reducer and tapered - cylindrical gear reducer.According to the transmission layout can be divided into expansion type, diverter type and coaxial type reducer.
CD1 Series Gear Reducer Overview:
| Lifting capacity(TON) | 1 | 2 | 3 | 5 | 10 | 16 |
| speed ratio | 47.69 | 60.52 | 68.95 | 81.14 | 113.30 | 113.30 |
| In addition to the conventional size, we can design and customize all kinds of non-standard electric hoist reducer according to the requirements of customers | ||||||
Main features of reducer
1) High transmission speed ratio and high transmission accuracy;
2) Compact structure and low noise;
3) Lubricated with mechanical oil, the working environment is excellent;
4) The box body and the box cover are processed by the processing center, with high processing precision and good meshing
conditions of the gears;
5) The gears are designed with helical teeth, with large bearing capacity and strong impact load bearing capacity.
Large transmission speed ratio and high transmission accuracy
Compact structure, low noise Mechanical oil lubrication, excellent
working environment Box body and cover are processed by machining
center, with high machining accuracy and good gear engagement
conditions. All gears are designed with helical teeth, which have
large bearing capacity and strong impact load bearing capacity.
FAQ
Q: What is our factory product range?
A: Gearbox, crane gearbox, overhead crane, electric hoists, three
in one geared motor, single/ double girder overhead cranes,
explosion-proof equipment and so on.
Q: What information should I provide if I want to order the
products?
A:1) Product information: Quantity, specification (capacity,
lifting height, voltage, size, material, color and packing
requirements,the power source of working environment or other
specials)
2) Delivery time required.
3) Shipping information: Company name, address, phone number,
destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: 40% deposit, with the balance before delivery, we accept T/T and
L/C at sight.
Q: What is your term of delivery?
A: We accept EXW, FOB Qingdao or FOB Shanghai, CIF ... . You can choose the one which is the most convenient or cost effective for you.
Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
|
|
