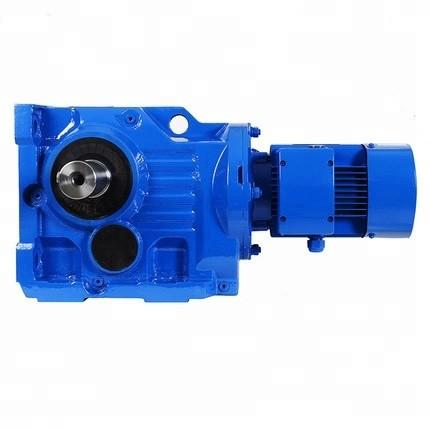

    K 90 Degree Electric Motor Speed Reducer

    Ask Lasest Price
    Brand Name : Dongtai
    Model Number : DTK
    Certification : ISO 9001:2016
    Price : Negotiated
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 500 sets per month
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    K 90 Degree Electric Motor Speed Reducer

    Products Description


    K 90 Degree Electric Motor Speed Reducer

    K 90 Degree Electric Motor Speed Reducer


    1. Highly Standard Modular Designed: The products are easily connected with and driven by different types of motors and various input power. The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solution for varied requirements.

    2. Ratio: Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.

    3. Mounting Arrangement: No strict limitation to the mounting arrangement.

    4. High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburizing process and precise grounding to sequentially get high loading capacity of per certain volume.

    5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.

    6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.

    7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.

    8. Large radial loading ability.

    9. Axial load ability of up to 5% of radial load.
    Technical Data:
    Model:
    K Series - Foot-mounted, solid shaft output
    K(KA, KF, KAF, KAB, KAZ) Series – Solid shaft input
    Housing
    Cast Iron
    Input power
    0.12-200kw
    Output torque
    10-61900N.m
    Output speed
    0.08-261rpm
    Bearing
    NSK,SKF or on request
    Ratio
    5.36~178.37
    Installation Form
    Foot, Flange, Shaft Mounted
    Seal
    SKF or on request
    Gears
    Helical-bevel Gears
    Input Configurations
    Equipped with Electric Motors
    Solid Shaft Input
    IEC-normalized Motor Flange
    Applicable Motors
    Single Phase AC Motor, Three Phase AC Motor
    Brake Motors
    Inverter Motors
    Multi-speed Motors
    Explosion-proof Motor
    Roller Motor
    Output Configurations
    Solid Shaft Output
    Hollow Shaft Output
    Installation
    Foot-mounted
    B5 Flange-mounted
    B14 Flange-mounted
    Shaft-mounted
    Lubrication
    Oil-bath and Splash Lubrication

    Main Features

    1. Compact structure, modular design
    2. High efficiency of the gear units of over 90%
    3. Long service life
    4. Multi-stage(2 or 3 stages) gear units for low output speed
    5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
    6. Can be combined with other types of gearboxes (Such as R Series)


    Application Industry


    The K series of gearbox is wide application, specialize in Metallurgy, Sewage treatment, Chemical Industry, Pharmacy, Agriculture equipment, Oil industry, Belt Conveyor, Food machine, Mixer, Mixing machine, Automatic production line, Packaging, Material handling, Papermaking, Sugar making, Engineering Machines, Construction, Mechanical-electromechanical industry etc.


    Our Service


    PRE SALES SERVICES:

    In order to allow each customer to better understand the product performance and requirements, we will provide detailed and thoughtful service. 1: The company regularly sends company profiles to each potential customer including the company's product information, the company's various strengths, and the detailed production information.

    2: According to the different needs of users, we have developed and manufactured products of different types, and salesmen will recommend the appropriate products for you in detail, so as to help you choose the right equipment.


    AFTER SALE SERVICE:

    The company will timely deliver the goods according to the terms of the contract, and the customer service staff will communicate with customers timely and effectively, so as to solve all kinds of products that do not understand in the process of customer product use. Follow the customer's feedback after receiving the equipment. We receive the quality of any product, and the technicians will guide the problem. All products have a guarantee of three. Do a good job of maintenance and service.
