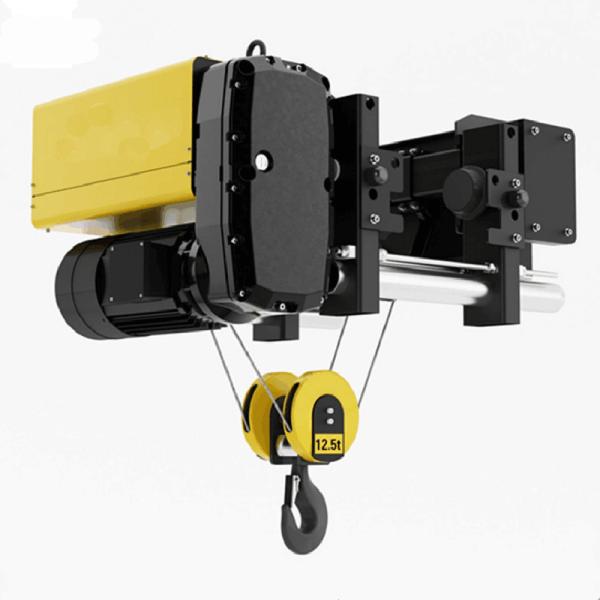

DONGTAI Advanced High Quality Single Girder Electric Wire Rope Hoist Lift

Product Description

Dongtai European type electric hoists adopt advanced European technology, and the overall technical level has reached the advanced level of similar products at home and abroad. European-type electric hoist is characterized by compact structure, light weight, small wheel pressure, large space utilization, and high cost performance. At the same time, the larger working range of the European-type electric hoist can increase the utilization rate of the internal area of the plant and reduce the blind spot. European-style electric hoists use high-quality components, which are safe, reliable and durable. Moreover, it adopts modular design, has low maintenance cost, convenient maintenance and complete spare parts service. The European-style electric hoist adopts humanized design, which enables customers to increase safety and comfort during use. The appearance and parameter performance design are particularly obvious, and it is the star product of our company.

Lifting motor:

1.Squirrel cage type asynchronous motor speed to 3000 rpm
2.Double speed or step-less speed regulation
3.Class F insulation, protection grade P55.

Running motor:

1.High flexibility and reliability.
2.It can be connected directly to crane girders and load-bearing structures.

Rope drum:

1.Large diameter rope drum Dd/dr=46
2.Rope guide is wear resistant, high security

Electric control:

1.European hoist can record the operation status.
2.Provide warnings, it is more timely and reasonable.

Hools:

1.DIN 17200 standard Hook, quenched and tempered 34CrMoV steel
2.Rotate freely 360 degrees

Parameter

• Load capacity: 1ton ~80 tons
• Lifting height: 6m ~18morcustomized
• Driveunit: motorized or manual
• Working duty: FEM 2m, 3m
• Power source: Based on your power supply

Henan Dongtai Gear Co., Ltd. was founded in 1994. It’s a high-tech enterprise which can design and manufacture all kinds of gear reducers; The special reducer is non-standard design and customized.

Our main products are H & B series heavy-duty industrial gearbox, ZDY、ZLY、ZSY、ZFY series hard tooth surface cylindrical gear reducer; DBY/DCY/DFY/DCYK series hard tooth surface bevel gear reducer; QY, ZQ, ZSC series crane special reducer; R series helical gear reduction motor, F series parallel shaft helical gear reduction motor, K series spiral bevel gear reduction motor, S series helical gear worm gear reduction motor;0.5T-20T electric hoist reducer and various of shaft parts. We have the company's unique patent product which is anti-seepage oil reducer (The patent number: 200420003269.7). The product completely solves the problem of oil leakage of gear reducer which has plagued the industry for many years. The products have been sold to nearly 30 provinces, cities and autonomous regions in China, at the same our products are matched with more than 30 large crane factories in the industry. The company has excellent equipment, perfect process equipment, strong technical force, advanced testing instruments and complete testing means. The company undertakes the production and development of various standard and non-standard gears, and we have has passed ISO9001:2001 Quality System Certification.

The company is willing to provide the high quality, low price, high quality service business, the principle of contract and credit, the enterprise spirit of unity, development and innovation, to go hand in hand in economic construction, support each other and create a brilliant future together with friends.
