    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile

    Ask Lasest Price
    Brand Name : Dongtai
    Model Number : DTZQD
    Certification : ISO 9001:2016
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 6000 sets per month
    Delivery Time : 5-35 days
    • Product Details
    • Company Profile

    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile

    Crane gearbox ZQD series cylindrical gear reducer for Crane, chemical, textile


    Product Description

    ZQD Cylindrical gear reducer gear carburizing, quenching, grinding, high bearing capacity, low noise; mainly used for belt conveyor and various kinds of transport machinery, can also be used to drive other general machinery. It has the advantages of high bearing capability, long service life, small volume, high efficiency, light weight, for the input shaft and the output shaft is vertically arranged in the driving device.

    • Compared with general ZQ gearbox,the installation dimensions and input output shafts positions are kept the same.

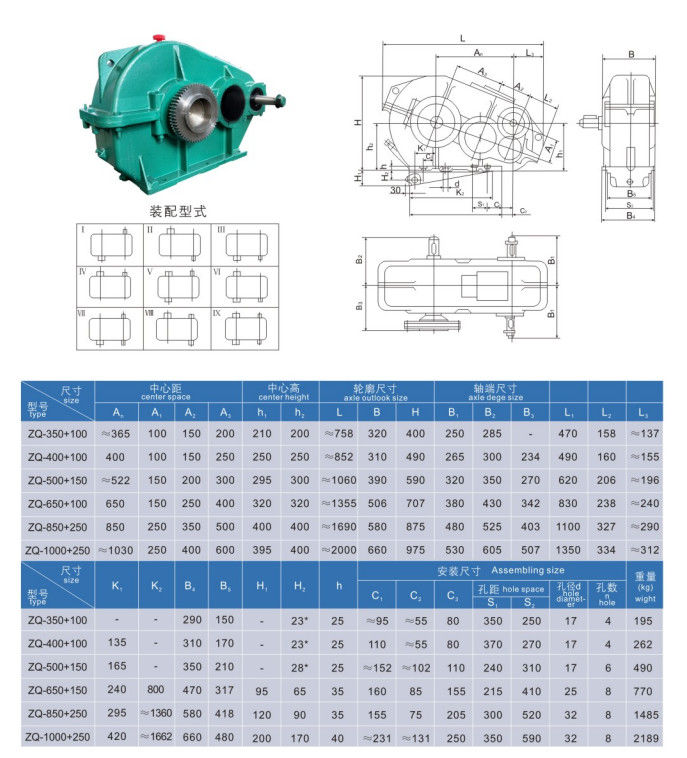

    • About the ZQ Large ratio gearbox just change the division face of the box into inclination,and the added high speed gear stage is above(please refer to the below installation drawing),the models are ZQ350+100, ZQ400+100, ZQ500+150, ZQ650+150, ZQ850+250 and ZQ1000+250.
    • While about the ZQD Gearbox,the added high speed gear stage is below,and it is flat base construction(please refer to the below installation drawing),the models are ZQD400,ZQD500,ZQD650,ZQD850 and ZQD1000.


    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile
    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile
    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile
    45C Steel Crane Gearbox ZQD Cylindrical Gear Reducer For Chemical Textile
    ZQD Series Gear Reducer Overview:

    ●Gear with high strength and low carbon alloy steel by carburizing quenching, tooth surface hardness of HRC58-62, gear are CNC grinding process, high precision, good contact.

    ●Transmission rate is high: single stage is greater than 96.5%, double stage is greater than 93%, grade three is greater than 90%.
    ●Stable operation, low noise.
    ●Small size, light weight, long service life, high carrying capacity.
    ●Easy to be disassembled and easy to install.

    Item NameDongtai ZQD Series Speed Reducer HIGH Transimission Ratio
    Model No.ZQD Series
    MaterialHousing/cast iron
    Gear/20CrMoTi; Shaft/ High-strength alloy steel
    Input Speed750-1500 rpm
    Output Speed600-1000 rpm
    Ratio65.54-317.28
    Input Power1.5-6229kw
    Pole1-4 pole
    Mamax Permissible Torque4800-400000Nm

    Quality Control
    System

    ISO9001-2008;CE;IQNet
    PackingPlastic bag + PE foam + Wooden case + Metal strap
    Delivery15-30 days after order


    FAQ

    Q:What information should I tell you to confirm speed reducer?

    A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.


    Q:What if I don't know which gear reducer I need?

    A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.


    Q:What should I provide if I want to order NON-STANDERD speed reducers?

    A: Drafts, Dimensions, Pictures and samples if possible.


    Q:What is the MOQ?

    A: It is OK for one or small pieces trial order for quality testing.


    Q:How long should I wait for the feedback after I send the inquiry?

    A: Within 12 hours


    Q:What is the payment term?

    A:You can pay via T/T(40% in advance+60% before delivery), L/C


    Q:What is the delivery time?

    A:Normally is 20-30days after order, for special model or big quantity please email to us for checking.


    Q:What is the guarantee time?

    A:12months
