DCY, DBY heavy duty 180 200 500 560 conical cylindrical gear reducer

DCY, DBY conical cylindrical gear reducer

Overview
The conical cylindrical gear reducer (hereinafter referred to as the reducer) is used for the transmission device in which the input shaft and the output shaft are arranged in a vertical direction. It is mainly used in belt conveyors and various transportation machinery, and can also be used in the transmission mechanism of various general machinery such as coal, metallurgy, mining, chemical industry, building materials, light industry, and petroleum. The product has the advantages of high carrying capacity, low noise, small size, light weight, high efficiency and long service life.
Model standard

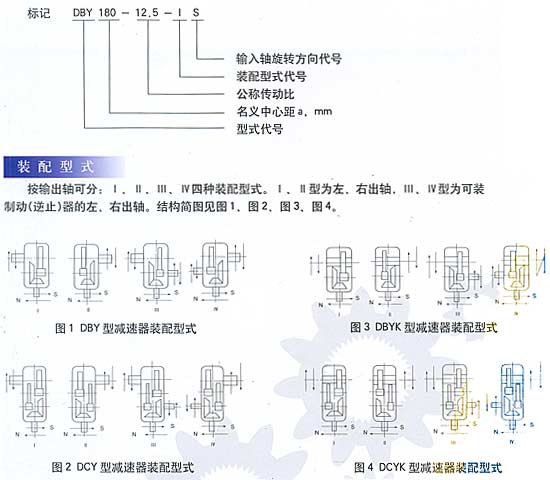

The model of the reducer consists of the type code, the nominal center distance a (the center distance of the final stage), the nominal transmission ratio, the assembly type code, and the input shaft rotation direction code.
D is the group code of the belt conveyor, B is a two-stage transmission, c is a three-stage transmission, Y is a hard tooth surface gear, z is a medium hard tooth surface gear, and K is the output shaft is in the form of a hollow shaft.
Nominal center-to-center distance: expressed in actual numbers, in mm.
Transmission ratio: expressed by the nominal transmission ratio.
Assembly form: represented by Roman numerals l, ll, ..., jV.
The rotation direction of the input shaft: looking at the direction of the input shaft, s is the clockwise direction, and N is the counterclockwise direction.

Henan Dongtai Gear Co., Ltd. was founded in 1994. It’s a high-tech enterprise which can design and manufacture all kinds of gear reducers; The special reducer is non-standard design and customized.

Our main products are H & B series heavy-duty industrial gearbox, ZDY、ZLY、ZSY、ZFY series hard tooth surface cylindrical gear reducer; DBY/DCY/DFY/DCYK series hard tooth surface bevel gear reducer; QY, ZQ, ZSC series crane special reducer; R series helical gear reduction motor, F series parallel shaft helical gear reduction motor, K series spiral bevel gear reduction motor, S series helical gear worm gear reduction motor;0.5T-20T electric hoist reducer and various of shaft parts. We have the company's unique patent product which is anti-seepage oil reducer (The patent number: 200420003269.7). The product completely solves the problem of oil leakage of gear reducer which has plagued the industry for many years. The products have been sold to nearly 30 provinces, cities and autonomous regions in China, at the same our products are matched with more than 30 large crane factories in the industry. The company has excellent equipment, perfect process equipment, strong technical force, advanced testing instruments and complete testing means. The company undertakes the production and development of various standard and non-standard gears, and we have has passed ISO9001:2001 Quality System Certification.

The company is willing to provide the high quality, low price, high quality service business, the principle of contract and credit, the enterprise spirit of unity, development and innovation, to go hand in hand in economic construction, support each other and create a brilliant future together with friends.
