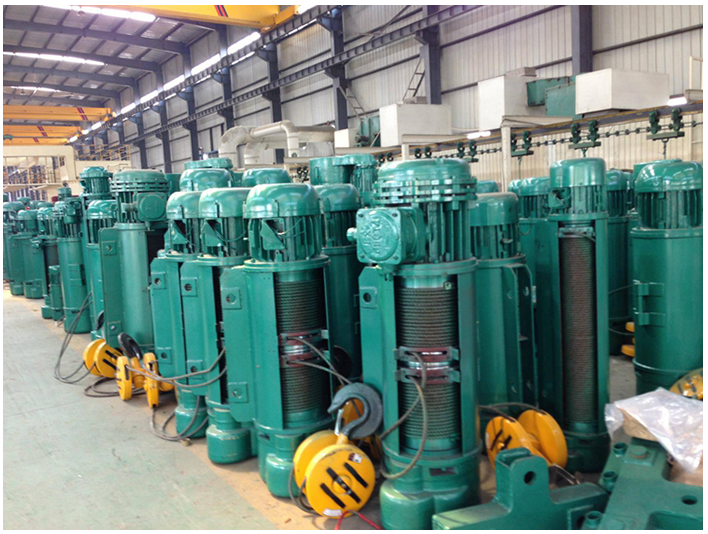

9m Wire Rope Remote Control Factory 15ton Overhead Crane Electric crane Hoist

The parts of wire rope electric hoist can be roughly divided into:

Wire rope electric hoist components
1. Reducer 2. Reel device 3. Hoisting motor 4. Electric trolley 5. Cone brake 6. Adjusting nut 7. Rope guide 8. Coupling 9. Hook device 10. Control button 11. Hollow shaft 12. Box 13. Sealing ring 14.09 Gear 15.06 Gear shaft 16.05 Gear shaft 17.04 Gear shaft 18. Ball bearing 19. Needle bearing 20. Box cover 21. Breathable plug

The functions and functions of each part are as follows:

Reducer: It is a three-stage fixed-axis helical gear transmission mechanism. The gears and gear shafts are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron, with tight assembly and good sealing.
Control box: It is a device that can cut off the main circuit in an emergency, and has an upper and lower stroke protection section fire limiter.
Wire rope: It is a heavy-duty wire rope, which ensures durability. Conical motor: The hoisting motor adopts a large dynamic torque conical rotor to brake the asynchronous motor, and no external brake is required.
Button switch: Hand-operated, light and flexible, divided into two ways: corded control and cordless remote control.

Inspection

In the daily inspection, monthly inspection and annual inspection, all parts that do not meet the requirements should be repaired, adjusted or replaced immediately. Repairs should meet the following requirements:
1. The replacement parts should be the same material and performance as the original parts during maintenance;
2. When the structural parts need to be repaired by welding, the materials, welding rods and welding quality used shall meet the quality standards of the original structural parts;
3. When the electric hoist is in working state, maintenance and maintenance shall not be carried out.

Henan Dongtai Gear Co., Ltd. was founded in 1994. It’s a high-tech enterprise which can design and manufacture all kinds of gear reducers; The special reducer is non-standard design and customized.

Our main products are H & B series heavy-duty industrial gearbox, ZDY、ZLY、ZSY、ZFY series hard tooth surface cylindrical gear reducer; DBY/DCY/DFY/DCYK series hard tooth surface bevel gear reducer; QY, ZQ, ZSC series crane special reducer; R series helical gear reduction motor, F series parallel shaft helical gear reduction motor, K series spiral bevel gear reduction motor, S series helical gear worm gear reduction motor;0.5T-20T electric hoist reducer and various of shaft parts. We have the company's unique patent product which is anti-seepage oil reducer (The patent number: 200420003269.7). The product completely solves the problem of oil leakage of gear reducer which has plagued the industry for many years. The products have been sold to nearly 30 provinces, cities and autonomous regions in China, at the same our products are matched with more than 30 large crane factories in the industry. The company has excellent equipment, perfect process equipment, strong technical force, advanced testing instruments and complete testing means. The company undertakes the production and development of various standard and non-standard gears, and we have has passed ISO9001:2001 Quality System Certification.

The company is willing to provide the high quality, low price, high quality service business, the principle of contract and credit, the enterprise spirit of unity, development and innovation, to go hand in hand in economic construction, support each other and create a brilliant future together with friends.
